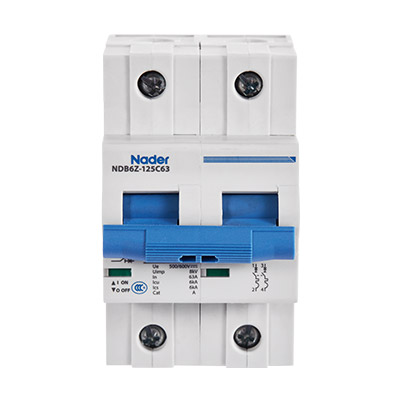

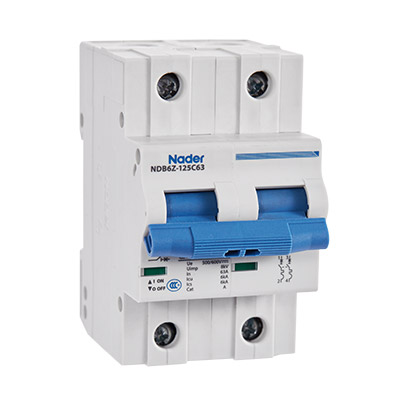

Nader NDB6Z-125 series MCB is suitable for AC / DC 50Hz/ 60Hz, rated voltage DC60V to DC1200V, rated current 63A to 125A power lines, as overload and short-circuit protection of power facilities and electrical equipment, as well as infrequent conversion of lines and infrequent startup of motors, and as an isolating switch. The product is a high-performance miniature circuit breaker, which is suitable for low-voltage terminal power distribution in the fields of photovoltaic, industry, energy, communication and infrastructure. The circuit breaker complies with GB/T14048.2 and IEC60947-2 standards. The product has accurate protection characteristics, high breaking capacity, stable action performance, small size and beautiful appearance
2021 Quick Selection Guide »
|Impulse voltage endurance||4000V|
|Meet a criterion||IEC 60947-2|
|Instantaneous Tripping Characteristic||Type C|
