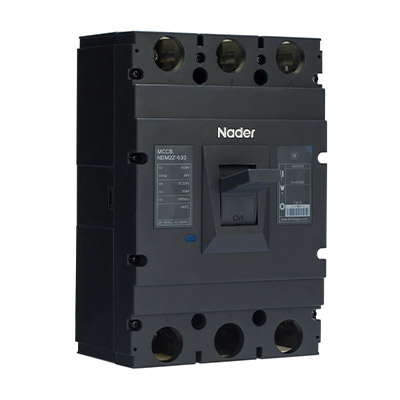

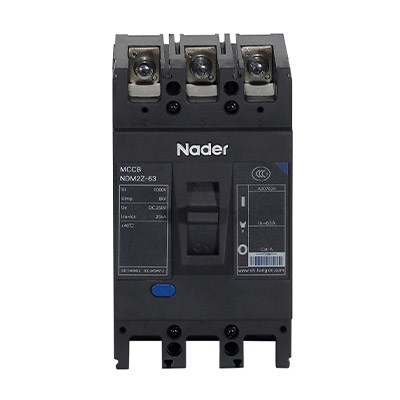

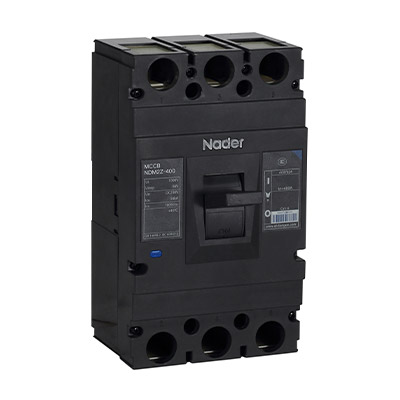

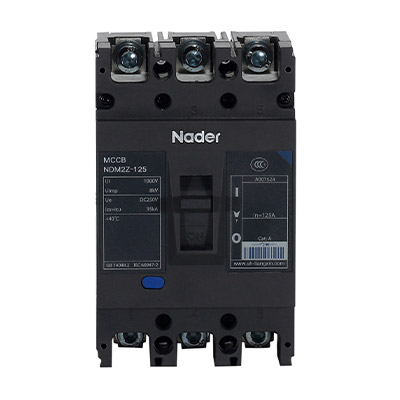

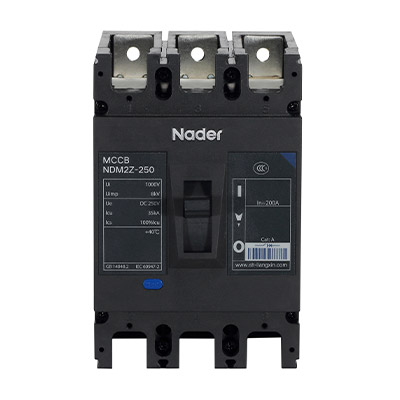

NDM2Z series MCCB is applicable to a DC power circuit, in which rated operational voltage is DC250V and rated operational current is to 800A, the breaker is used for allocating electric power, protecting circuit and power equipment. The breaker has overload and short circuit protections.
2021 Quick Selection Guide »
Downloads and support
Nader NDM3E-250 / 400 / 630 IOT MCCB is suitable for power distribution protection with AC 50Hz / 60Hz, rated working current 63A to 630A, rated insulation voltage 1000V and rated working voltage AC380V / 400V / 415V The circuit breaker has the functions of long-time delay, short-circuit short-time delay, instantaneous, over-voltage and under voltage and phase failure protection, and plays a protective role for the line and power supply equipment. It has the ability to feed back the current, voltage, power, electric energy, life and other information of the products to the terminal equipment, and the accuracy reaches the level of the electric meter. It is used to detect and monitor the load end, reduce the operation and maintenance cost of the power grid, and provide necessary data for the future energy efficiency system The product complies with IEC60947-2 and GB / GB/T14048.2 standards
Nader NDM2Z series MCCB is applicable to DC power grid circuits with rated working voltage of DC250V and rated working current of 10A to 800A, and are used to isolate, distribute electric energy, protect circuits and power supply equipment. The circuit breaker has overload and short circuit (NDM2ZB also has short circuit short delay protection).
Nader NDM5 series MCCB is suitable for infrequent switching and infrequent starting of motors in circuits with AC 50Hz / 60Hz, rated AC working voltage of 230V to 1000V and rated working current of 125A to 1250A. The circuit breaker has overload, short circuit and undervoltage protection functions (with undervoltage release), which can protect the line and power supply equipment from damage. The product has the characteristics of small size, high breaking capacity, short arcing and anti vibration
