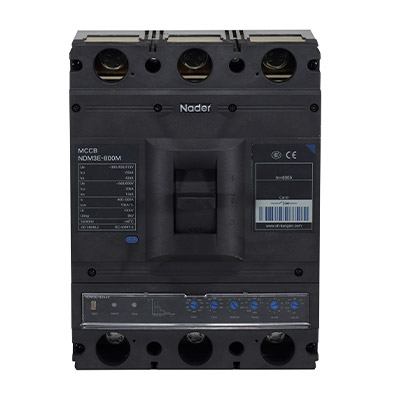

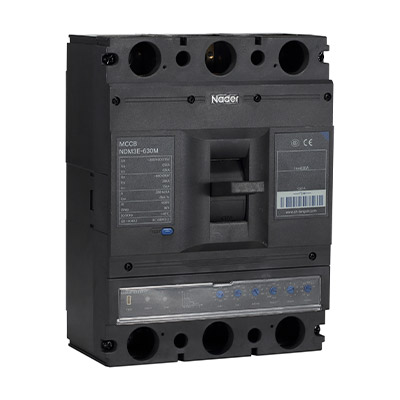

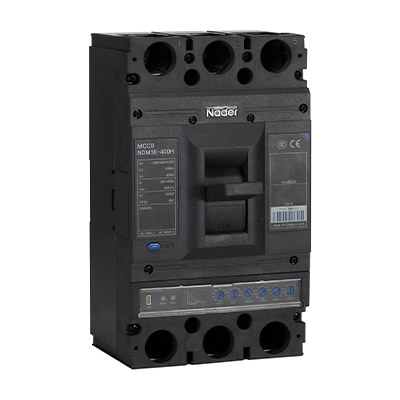

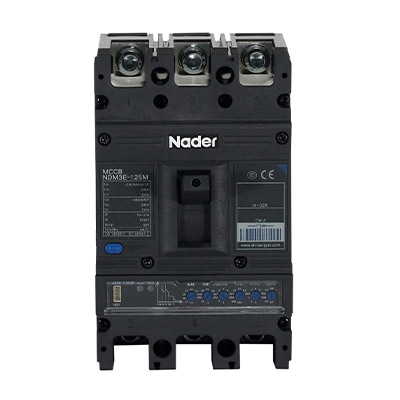

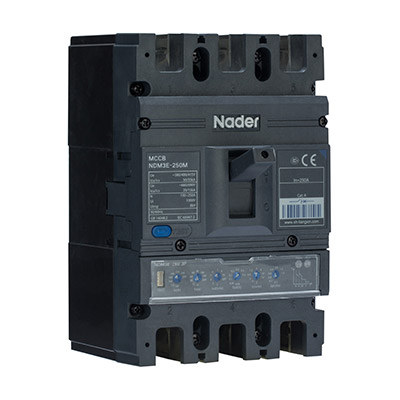

NDM3E Series Electronic Molded Case Circuit Breaker
Updated:August 12,2022 16:00PM

Nader NDM3E-250 / 400 / 630 IOT MCCB is suitable for power distribution protection with AC 50Hz / 60Hz, rated working current 63A to 630A, rated insulation voltage 1000V and rated working voltage AC380V / 400V / 415V The circuit breaker has the functions of long-time delay, short-circuit short-time delay, instantaneous, over-voltage and under voltage and phase failure protection, and plays a protective role for the line and power supply equipment. It has the ability to feed back the current, voltage, power, electric energy, life and other information of the products to the terminal equipment, and the accuracy reaches the level of the electric meter. It is used to detect and monitor the load end, reduce the operation and maintenance cost of the power grid, and provide necessary data for the future energy efficiency system The product complies with IEC60947-2 and GB / GB/T14048.2 standards
2021 Quick Selection Guide »



Features of NDM3E Series

  • The circuit breaker is pided into Type C (basic type), Type L (standard type), Type M (relatively high breaking type) and Type H (high breaking type) according to its rated limit short-circuit breaking capacity. The circuit breaker features small size, high breaking capacity, short flashover, vibration resistance and etc.
  • The circuit breaker can adopt packaged accessories for quick installation, thus responding to the user's requirements, without adjustment.


Downloads and support

Find out more about NDM3E Series




Questions & Answers for NDM3E Series

  • What is a molded case circuit breaker?
    Moulded Case Circuit Breakers Explained. ... A moulded case circuit breaker (MCCB) is a type of electrical protection device that is used to protect the electrical circuit from excessive current, which can cause overload or short circuit.
  • What is the difference between MCCB and MCB?
    MCB is miniature circuit breaker which is used to break small currents. Like in domestic LT circuits. The ratings usually end up to 100 A. MCCB is a Module case circuit breaker which has a rugged construction as it can break larger currents usually from (100-1000A).
  • What is MCCB and its working?
    Molded Case Circuit Breaker (MCCB) is a circuit breaker and trip device assembled in a mould case. Also it can automatically cut off electric power in case of overload and short circuit. It is meant for higher rated current and is commonly used in Industrial applications.
  • What causes MCCB to trip?
    Circuit overloading is known to be the most common reason for circuit breaker tripping. It simply means that we're running too many heavy power-consuming devices at the same time on the same circuit. The next most dangerous cause is a short circuit.
  • How do molded case circuit breakers work?
    The traditional molded-case circuit breaker uses electromechanical (thermal magnetic) trip units that may be fixed or interchangeable. An MCCB provides protection by combining a temperature sensitive device with a current sensitive electromagnetic device. Both these devices act mechanically on the trip mechanism.
  • Why we use Mccb instead of MCB?
    If evaluated from their power capacities, the MCB is essentially used for low-current requirements, such as, home wiring or small electronic circuits; while the MCCB is better used for high-power requirements. Type of electrical switch which protects the circuit from overload or short circuit.
