Nader Molded Case Circuit Breaker (MCCB): the AC voltage is from 400V to 1000V, the DC voltage is from 250V to 1500V, the current is from 10A to 1250A, and the number of poles includes 2P, 3P and 4P; CCC, CE, TUV and UL certifications have been obtained.MCCB is widely used in 5G communication (NDM2 Series, NDM5 Series), data center (NDM2 Series), solar energy (photovoltaic): combiner box, distributor box (NDM3 Series, NDM5 Series). There are many customers and cases in United States (Cisco, Emerson), Canada, Brazil, Spain, Sweden (Ericsson), Finland (Nokia), Germany (Siemens), Italy, United Kingdom, South Korea (Samsung), Vietnam, Malaysia and Philippines. 2021 Quick Selection Guide »

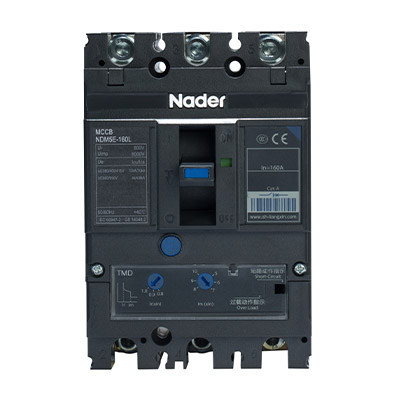

NDM5E Series Electronic Molded Case Circuit Breaker

Nader NDM5E series MCCB is applicable to the power grid circuit with AC 50Hz / 60Hz, rated working voltage AC380V to AC690V, and rated working current 32A to 1600A. The product can be used for infrequent conversion in the circuit, and has the functions of long delay, short-circuit short delay, instantaneous, grounding, pre alarm and undervoltage protection (with undervoltage release). It can protect the line and power supply equipment from damage. It can also feed back the current, voltage, power, electric energy, frequency, service life, opening and closing status, operation times and other information of the product to the upper computer or other energy efficiency management system, which is used to detect and monitor the circuit breaker, reduce the operation and maintenance cost of the power network, and provide necessary data for the future energy efficiency system This product has the characteristics of small volume, high breaking capacity, short arcing and anti - vibration

NDM3E Series Electronic Molded Case Circuit Breaker

Nader NDM3E-250 / 400 / 630 IOT MCCB is suitable for power distribution protection with AC 50Hz / 60Hz, rated working current 63A to 630A, rated insulation voltage 1000V and rated working voltage AC380V / 400V / 415V The circuit breaker has the functions of long-time delay, short-circuit short-time delay, instantaneous, over-voltage and under voltage and phase failure protection, and plays a protective role for the line and power supply equipment. It has the ability to feed back the current, voltage, power, electric energy, life and other information of the products to the terminal equipment, and the accuracy reaches the level of the electric meter. It is used to detect and monitor the load end, reduce the operation and maintenance cost of the power grid, and provide necessary data for the future energy efficiency system The product complies with IEC60947-2 and GB / GB/T14048.2 standards

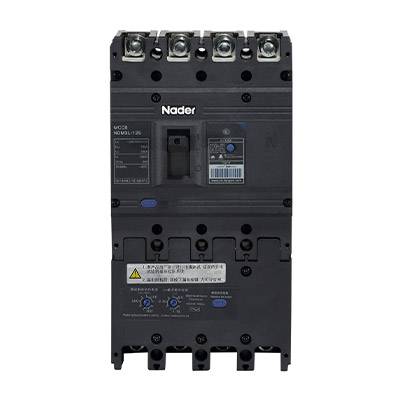

NDM3L Series Molded Case Residual Current Action Protector

Nader NDM3L series MCCB is mainly used in circuits with AC 50Hz / 60Hz, rated working voltage of 380V to 415V and rated working current of 16A to 800A for infrequent conversion and infrequent starting of motors. The circuit breaker has the functions of overload, short circuit and undervoltage protection, which can protect the line and power supply equipment from damage. At the same time, it can also provide protection against fire hazard and personal electric shock caused by long-term grounding fault that cannot be detected by overcurrent protection

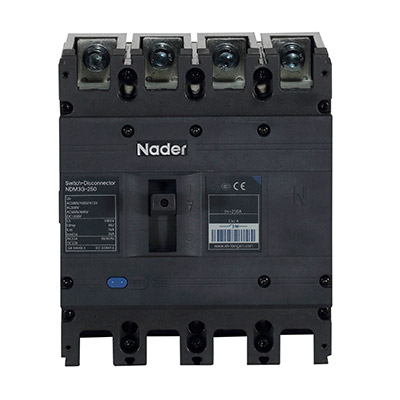

NDM3G Series Molded Case Disconnecting Switch

Nader NDM3G series disconnectors are applicable to circuits with rated working voltage of AC380~AC1140V, DC500V~ DC1000V, AC 50Hz / 60Hz, DC 250A~800A This product has the characteristics of small volume, high breaking height, short arcing and anti - vibration. It is an ideal product for land and ship use This product is used for breaking circuit and line isolation. It is widely used in power transmission and distribution and automation systems in various industries. This product complies with the standards GB14048.3 and IE 60947-3.

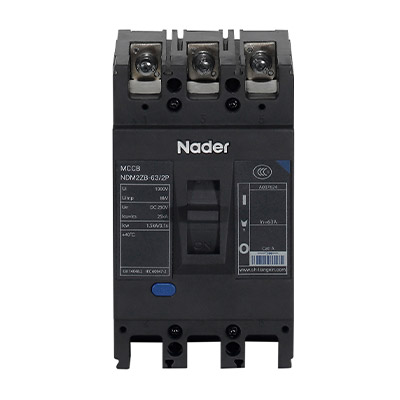

NDM2ZB Series DC Three-segment Molded Case Circuit Breaker

Nader NDM2Z series MCCB is applicable to DC power grid circuits with rated working voltage of DC250V and rated working current of 10A to 800A, and are used to isolate, distribute electric energy, protect circuits and power supply equipment. The circuit breaker has overload and short circuit (NDM2ZB also has short circuit short delay protection).

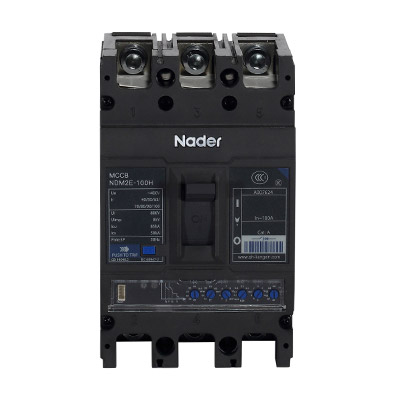

NDM2E Series Electronic Molded Case Circuit Breaker

NDM2E series MCCB is mainly used for infrequent switching in circuits with AC 50Hz, rated working voltage AC400V and rated working current 40A to 800A. It has the functions of isolation, overload long time delay inverse time limit, short-circuit short time delay inverse time limit, short-circuit short time delay fixed time limit, short-circuit instantaneous, grounding fault protection, current imbalance protection, phase failure protection, "four remote" function, overload alarm non tripping and undervoltage protection, and can protect the line and power supply equipment from damage. This product complies with the standards IEC 60947-2 and GB/T14048.2.
